Setting up data source for WebSphere

Setting up data source for WebSphere 6.1

The following section will take one database type (Oracle database with Oracle JDBC driver) as an example to show you how to create a data source for WebSphere, you can later create data sources for other database types by taking the same steps below but specifying different parameters according to Data source parameters.

Note:

  1. The JNDI name specified for the data source will be regarded as the data source name by PowerServer and AEM.

  2. If the global security mode is turned on in WebSphere, AEM will not be able to access the WebSphere data sources. Please refer to the section called “Required configurations when global security is on” for solutions.

Updating JDBC driver path in master configuration

1. Start the WebSphere Server and log on to the WebSphere Server Console.

2. Click Environment > Manage WebSphere Variable in the console.

3. Set the path of the Oracle JDBC driver to the value of the ORACLE_JDBC_DRIVER_PATH variable.

As required in JDBC driver preparation, the path of the Oracle JDBC driver is %WAS_HOME%\lib\ (Windows) or $WAS_HOME/lib/ (Unix/Linux). WAS_HOME is the installation folder of the WebSphere platform.

4. Save changes to the ORACLE_JDBC_DRIVER_PATH variable in the master configuration.

Creating a new J2C authentication data entry

1. Click Security > JAAS Configuration in the WebSphere administrative console, then click J2C Authentication Data.

2. Click New to create a new J2C authentication data entry.

Figure 18. New J2C authentication data entry

New J2C authentication data entry

Fill in details as required in the table below.

Table 17. Details for the new authentication data entry

Alias

Enter a suitable (short) name, such as "UDDIAlias"

Userid

Enter the database user ID used to read and write to the UDDI registry database.

Password

Enter the password associated with the user ID specified above.

Description

Enter a suitable description of the chosen user ID or leave it blank.


3. Click Apply and save changes to the master configuration.

Creating and configuring a JDBC provider

1. Click Resources | JDBC Providers in the WebSphere administrative console.

2. Click New. The JDBC Providers configuration window opens.

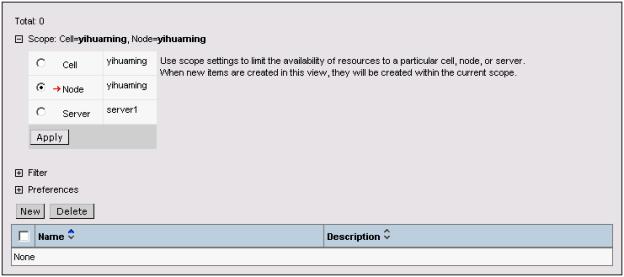

Figure 19. JDBC Providers configuration window

JDBC Providers configuration window

3. Select the correct JDBC provider type. For example, Oracle JDBC Driver.

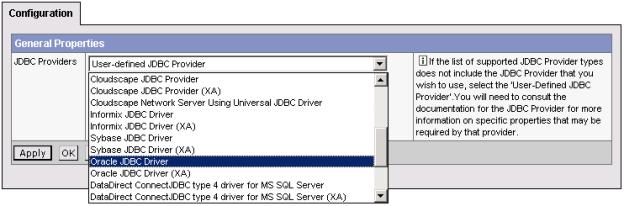

Figure 20. Select JDBC Provider type

Select JDBC Provider type

4. Select the driver provider and driver file.

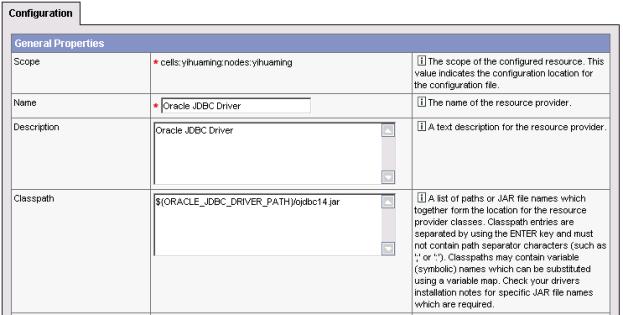

Figure 21. JDBC driver provider and driver file

JDBC driver provider and driver file

The Classpath field displays the path to the JDBC file that is configured in the WebSphere variable, for example, the ORACLE_JDBC_DRIVER_PATH driver.

5. Click OK to return to the JDBC providers page, where the new JDBC driver appears in the list.

6. Save the settings.

Creating a data source

1. Click Resources > JDBC Providers in the administrative console.

2. Choose the JDBC resource provider under which you want to create the data source.

3. Click the Data Sources link under Additional Properties. The Data sources page is displayed.

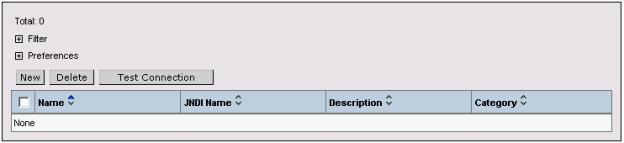

Figure 22. Data source page

Data source page

4. Click New to display the Data source settings page.

5. Specify the data source name and JNDI name of the data source.

Note:

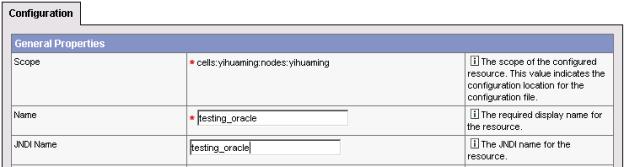

Figure 23. Data source properties

Data source properties

6. Select the J2C authentication data entry configured in Creating a new J2C authentication data entry in the Container-managed Authentication Alias list box.

7. Click Apply and OK to return to the Data Sources window. The name of the new data source displays in the window.

8. Click the name of the new data source in the Data Sources window.

9. Click the link to Custom Properties in the Additional Properties of the data source configuration window.

Figure 24. Additional properties

Additional properties

10. Configure all the required fields according to the instructions in the window. For example, set the URL property to jdbc:oracle:thin:@192.0.0.51:1521:testing if Oracle 11g, or jdbc:oracle:thin:@//192.0.0.51:1521/testing if Oracle 12c, 18c, and 19c.

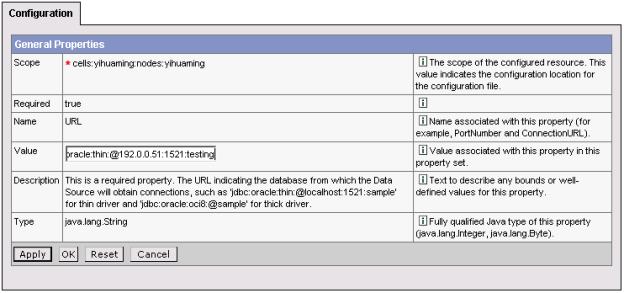

Figure 25. Data source URL property

Data source URL property

11. Click OK to return to the data source configuration window.

12. Click the Test Connection for the new data source. Make sure the connection is successful before continuing.

13. Save the master configuration.

Setting up data source for WebSphere 8.0

The following section will take one database type (Teradata database with Teradata JDBC driver) as an example to show you how to create a data source for WebSphere, you can later create data sources for other database types by taking the same steps below but specifying different parameters according to Data source parameters.

Note:

  1. The JNDI name specified for the data source will be regarded as the data source name by PowerServer and AEM.

  2. If the global security mode is turned on in WebSphere, AEM will not be able to access the WebSphere data sources. Please refer to the section called “Required configurations when global security is on” for solutions.

Creating and configuring a JDBC provider

Step 1: Start the WebSphere Server and log on to the WebSphere Server Console.

Step 2: Click Resources > JDBC > JDBC providers. In the right pane, select the appropriate scope for the JDBC provider. (This scope becomes the scope of your data source.) You can choose a cell, node, cluster, or server. And then click New.

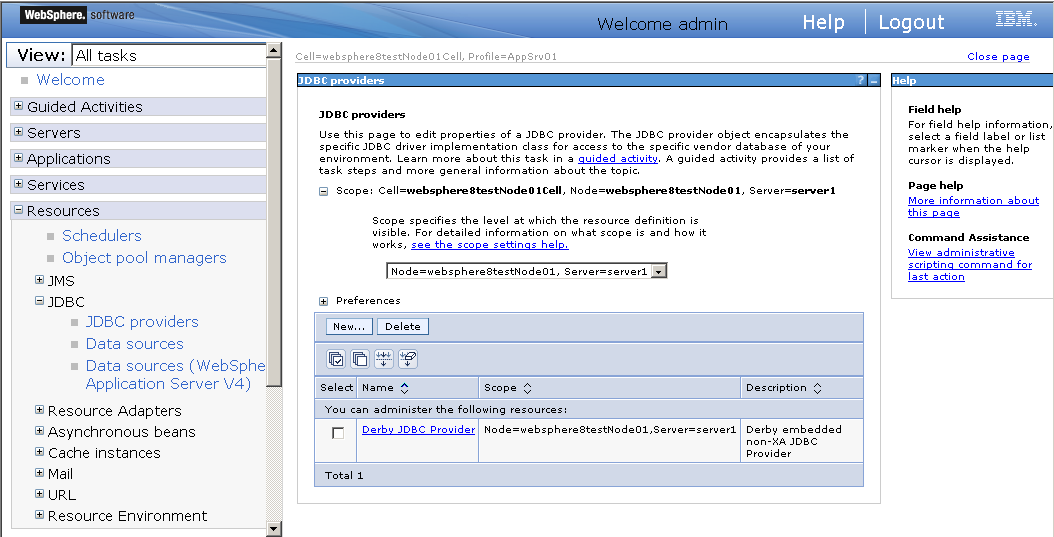

Figure 26. JDBC providers page

JDBC providers page

Step 3: On the Create new JDBC provider page, enter or select the following information, and then click Next.

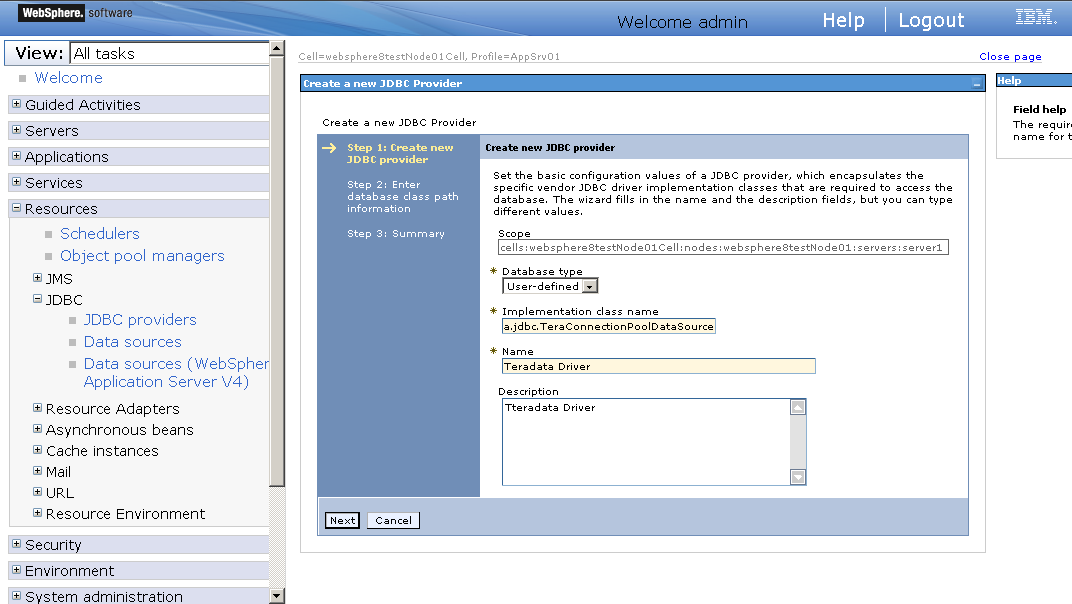

Figure 27. Create new JDBC provider page

Create new JDBC provider page

Fill in details as required in the table below.

Table 18. Create new JDBC provider

Field

Description

Value

Database type

Select the database type of the JDBC provider you need to create from the drop-down list. Note: If the list of database types does not include the database type that you want to use, select "User-defined".

User-defined

Implementation classname

Enter the name of the connection pool driver of the database specified.

com.teradata.jdbc.TeraC​onnectionPoolDataSource

Name

Enter a desired new JDBC provider name.

Teradata Driver

Description

Enter the description that you like to describe your new JDBC provider.

Teradata Driver


Step 4: On the Enter database class path information page, enter the database class path, and then click Next.

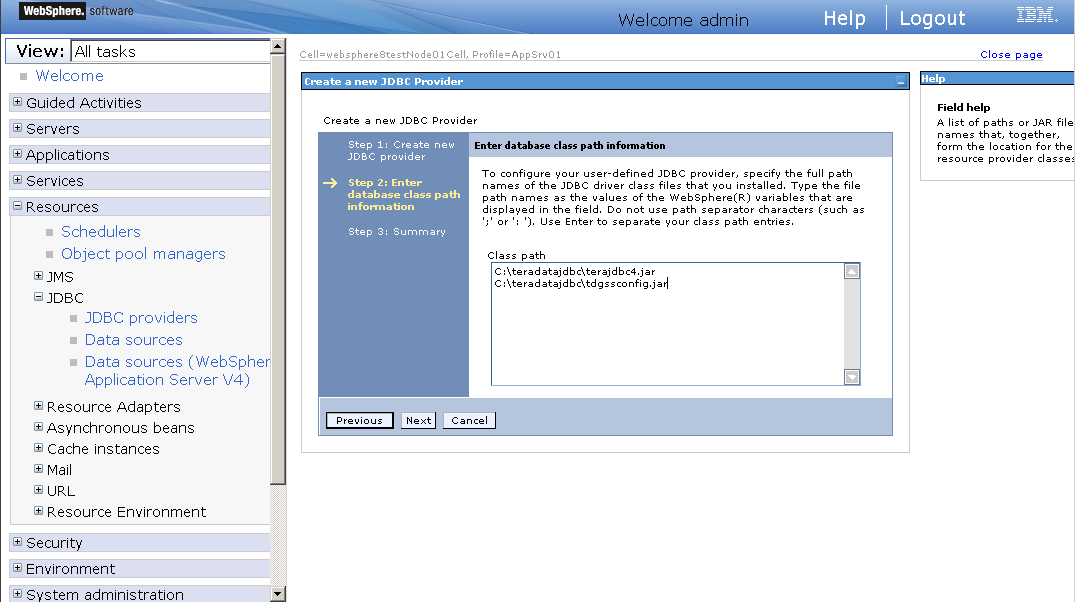

Figure 28. Enter database class path information page

Enter database class path information page

Fill in details as required in the table below.

Table 19. Database class path information

Field

Description

Value

Class path

The full name of the jar files that make up the Teradata JDBC Driver. The example assumes that you have copied these files to the C:\teradatajdbc directory on your system. A path on a Unix machine would use forward slashes to separate its components.

C:\teradatajdbc\terajdbc4.jar

C:\teradatajdbc\tdgssconfig.jar


Step 5: On the Summary page, you can review the settings and when done click Finish.

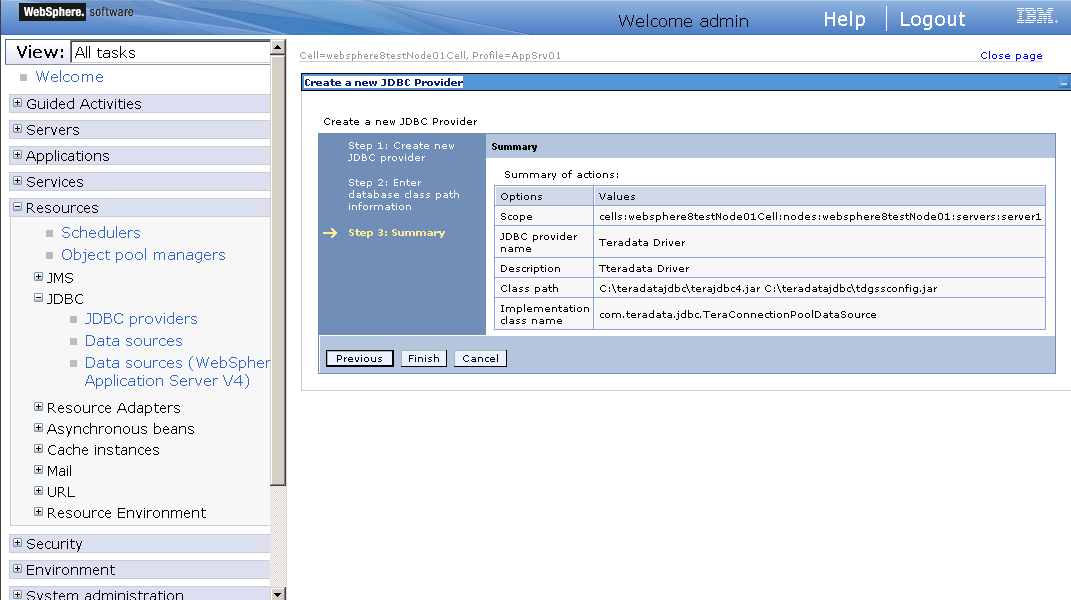

Figure 29. Summary page

Summary page

Step 6: On the JDBC providers page, click Save to commit these changes to the master configuration and have them go live inside of the server.

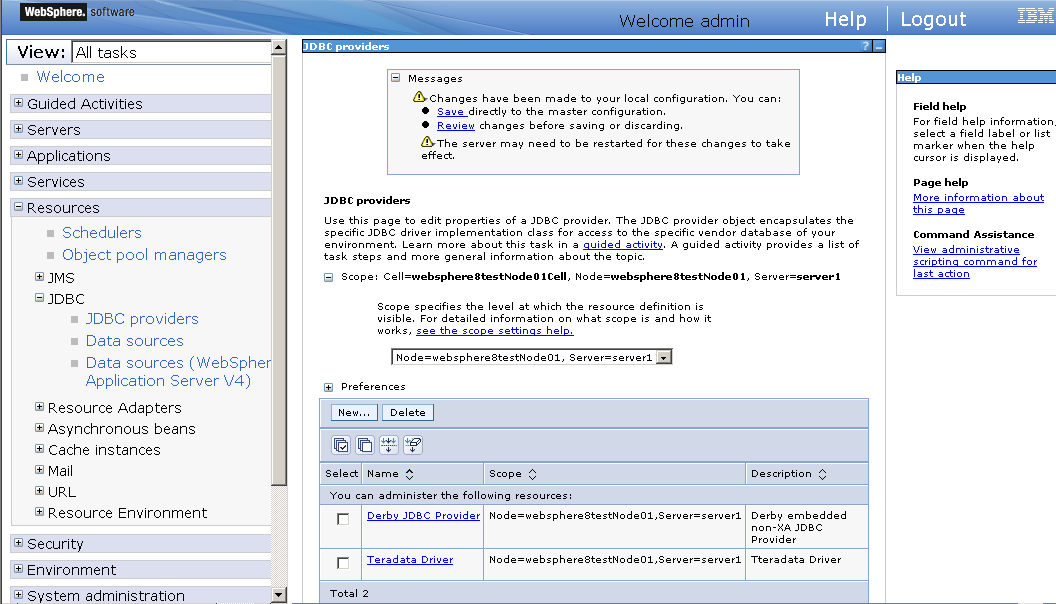

Figure 30. JDBC providers page

JDBC providers page

Now the "Teradata Driver" appears in the list of JDBC providers.

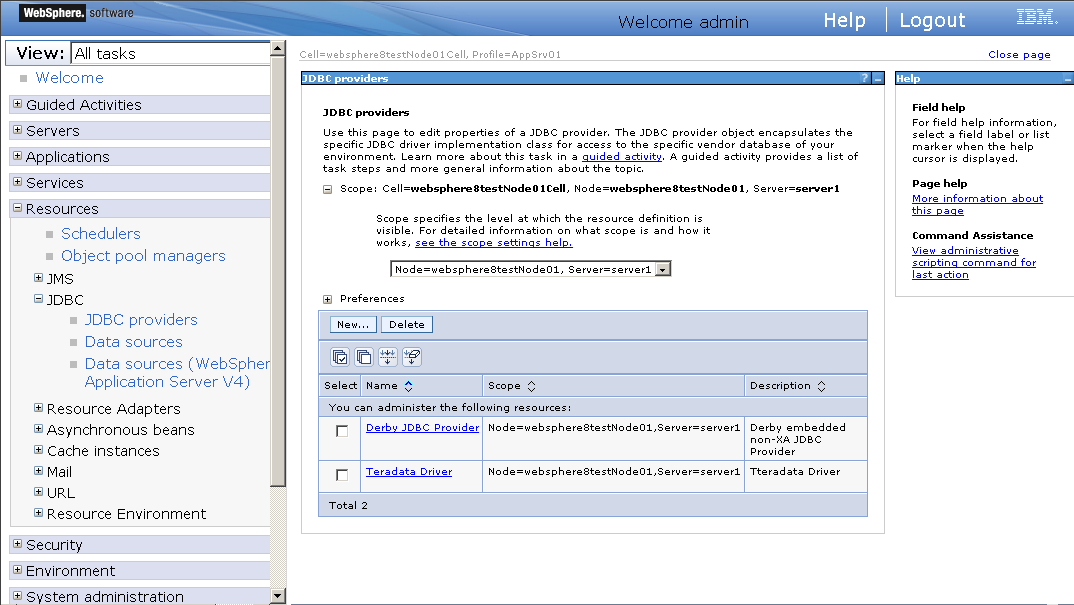

Figure 31. The newly created JDBC providers page

The newly created JDBC providers page

Creating the Data Source

Step 1: Start the WebSphere Server and log on to the WebSphere Server Console.

Step 2: Click Resources > JDBC > Data sources. In the right pane, select appropriate scope for the data source. (This scope becomes the scope of your data source.) You can choose a cell, node, cluster, or server. And then click New.

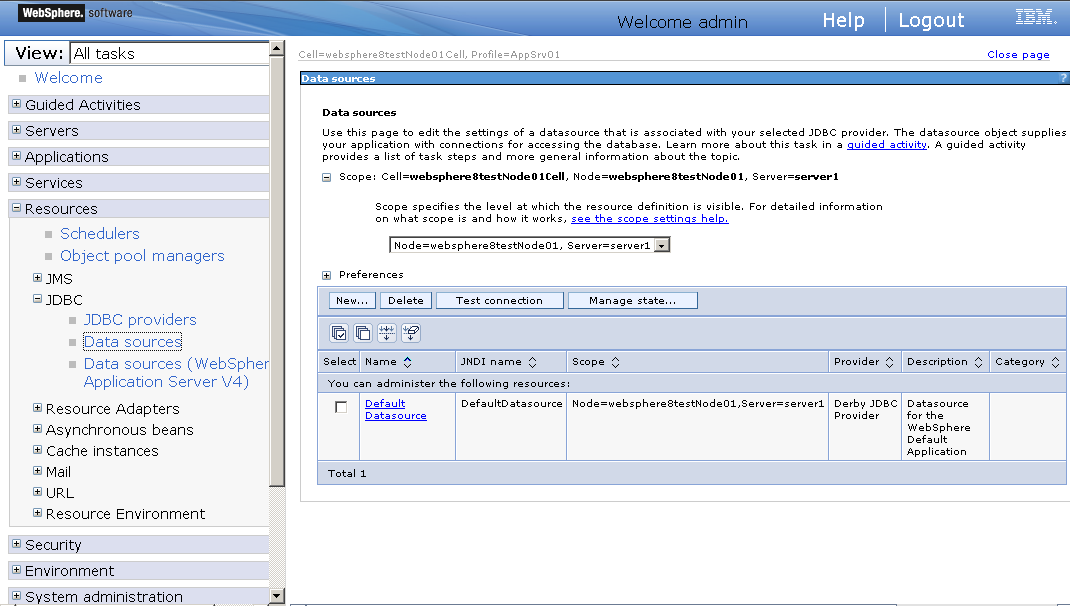

Figure 32. Create the Data Source page

Create the Data Source page

Step 3: On the Enter basic data source information page, enter the following information. And then click Next.

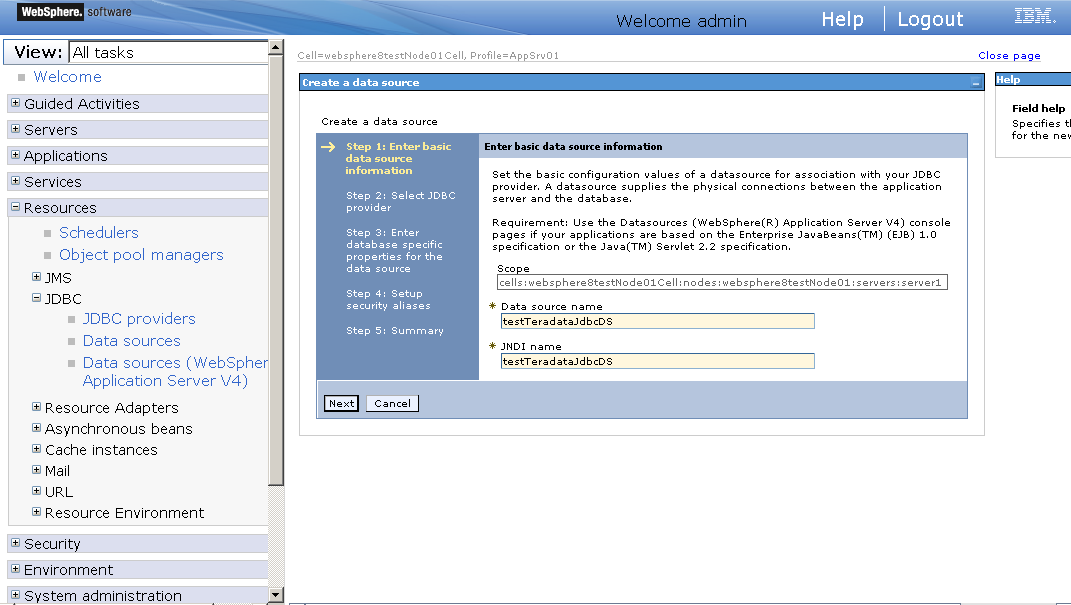

Figure 33. Enter basic data source information page

Enter basic data source information page

Fill in details as required in the table below.

Table 20. The basic Data Source information

Field

Description

Value

Data Source Name

Enter a desired new JDBC data source name.

testTeradataJdbcDS

JNDI Name

Enter a JNDI name that you like to assign to your new JDBC Data Source.

testTeradataJdbcDS


Note:

Step 4: On the Select JDBC provider page, click Select an existing JDBC provider and select Teradata Driver from the drop-down list. And then click Next.

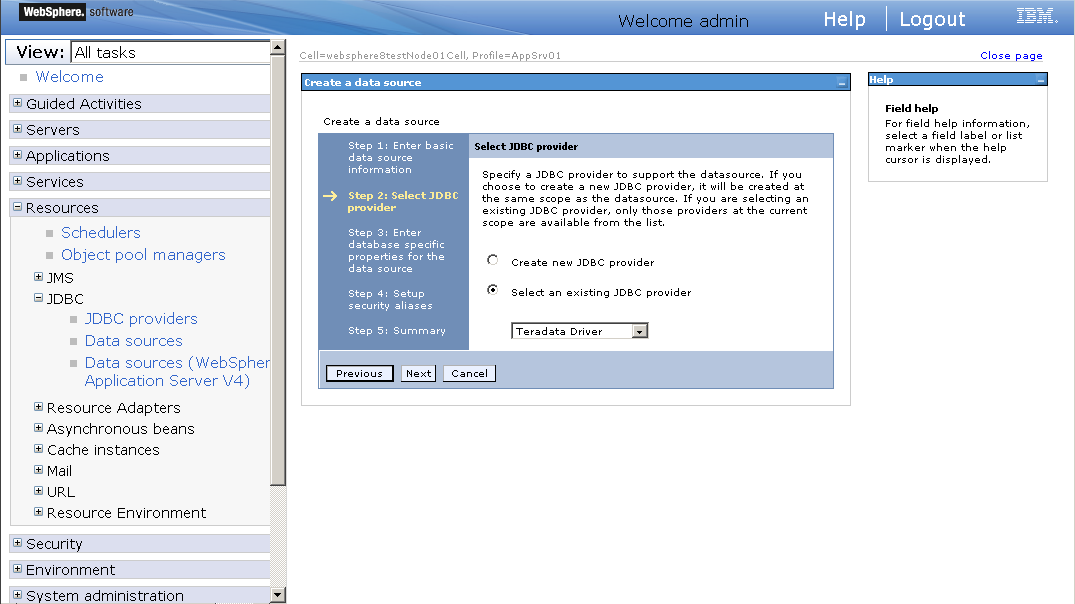

Figure 34. Select JDBC provider page

Select JDBC provider page

Step 5: On the Enter database specific properties for the data source page, click Next.

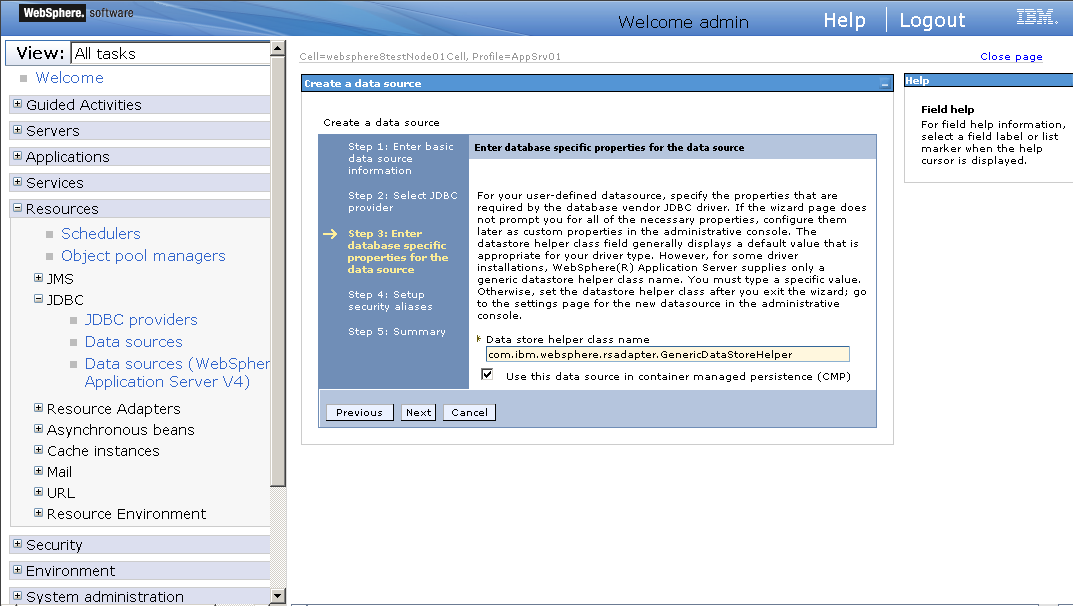

Figure 35. Enter database specific properties for the data source page

Enter database specific properties for the data source page

Fill in details as required in the table below.

Table 21. Database specific properties for the data source

Field

Description

Value

Data store helper class name

Data store helper classes provided by WebSphere.

Select the default value "com.ibm.websphere.rsadapte​r.GenericDataStoreHelper".

Container Managed Persistence

Set if Data Source is used for CMP of EJBs.

Check this box if the Data Source is used with CMP entity beans. Otherwise, leave it unchecked.


Step 6: On the Setup security aliases page, keep the default values as "none", and then click Next.

Figure 36. Setup security aliases page

Setup security aliases page

Step 7: On the Summary page, you can review the settings and when done click Finish.

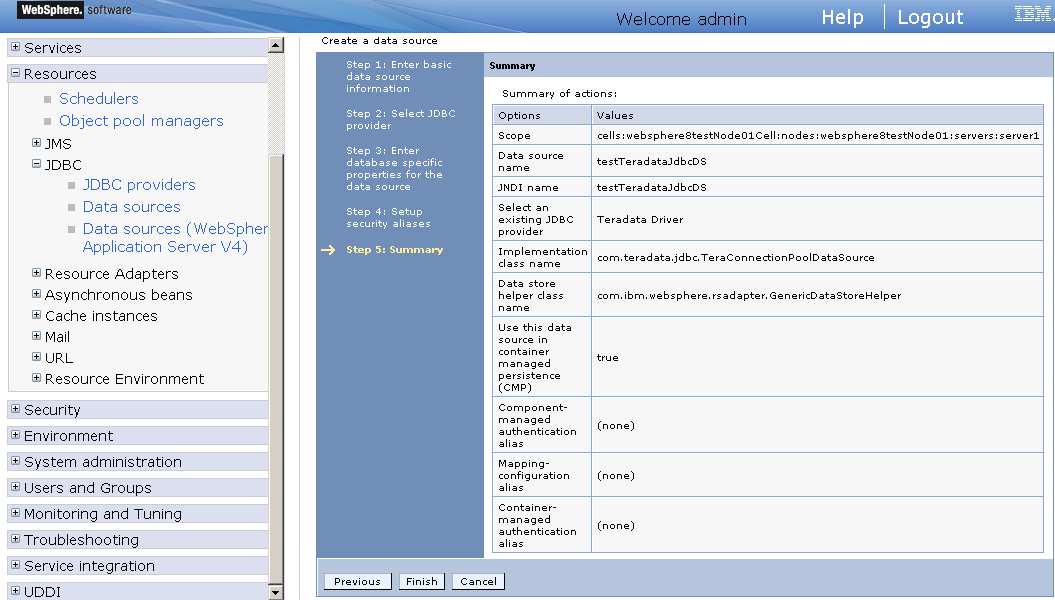

Figure 37. Summary page

Summary page

Step 8: On the Data Sources page, click Save to commit these changes to the master configuration and have them go live inside of the server.

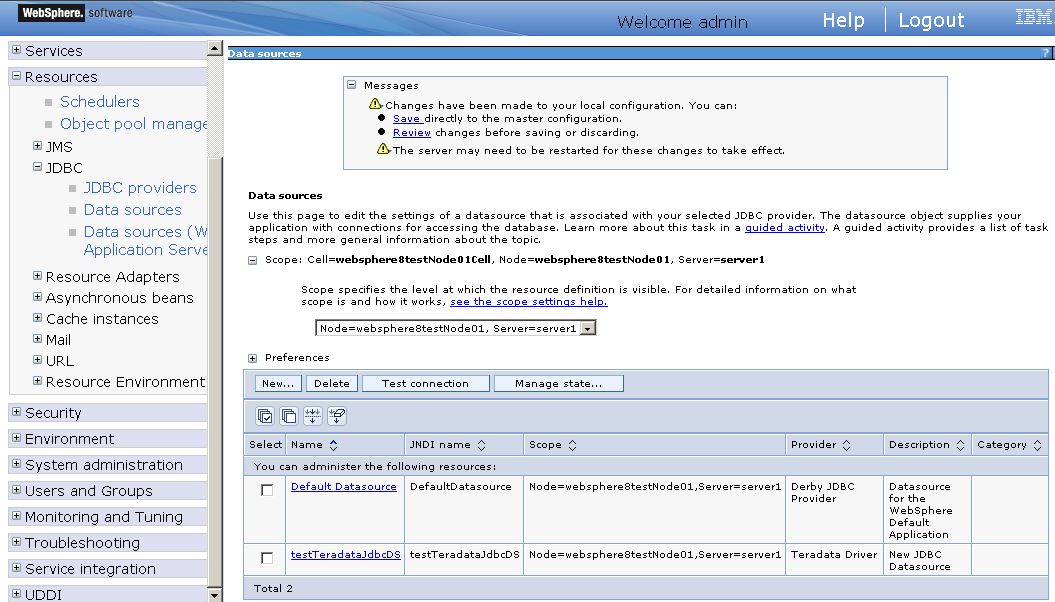

Figure 38. Data Sources page

Data Sources page

Step 9: On the following page, click testTeradataJdbcDS in the Data Sources window.

Figure 39. The newly created data source information page

The newly created data source information page

Step 10: On the following page, click the link to Custom properties in the Additional Properties of the data source configuration window.

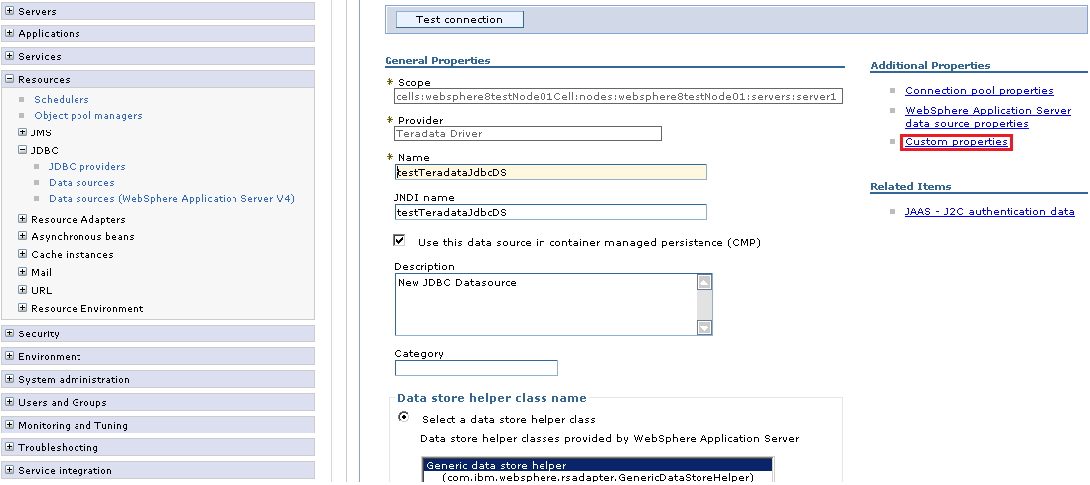

Figure 40. The details of the newly created data source information page

The details of the newly created data source information page

Step 11: On the Custom properties page, specify the Custom properties and click Save.

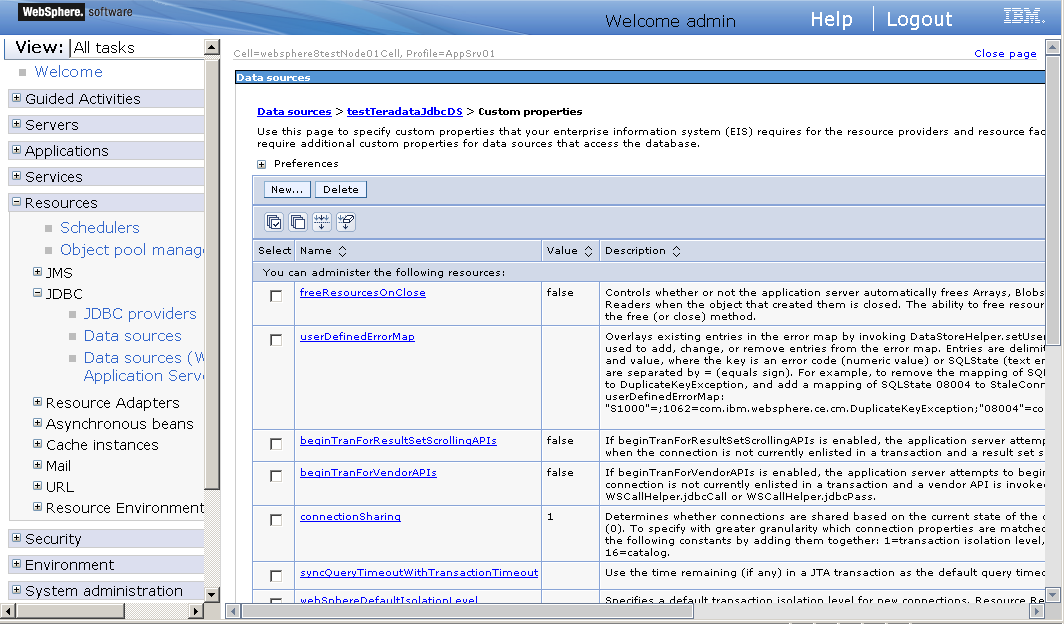

Figure 41. Custom properties page

Custom properties page

Fill in details as required in the table below.

Table 22. Custom properties

Name

Description

Value

DSName

Enter a host name or IP address of the database server.

192.0.2.54

USER

Enter the database account user name that you want to use to create the database connections.

DBC

PASSWORD

Enter the database account password that you want to use to create the database connections.

DBC

CHARSET

Enter the session character set utilized to map characters bidirectionally from the client application and the Teradata Database.

UTF8

TMODE

Enter the session mode on a Teradata Database V2R2.0 or later system.

ANSI

account

Enter the database account name that you want to use to create the database connections.

DBC


Step 12: Click Test Connection for the new data source. A message will display as follows if the data source is successfully created.

Figure 42. Test the connection for the data source

Test the connection for the data source

Required configurations when global security is on

If the global security mode is turned on in WebSphere, AEM will not be able to access the WebSphere data sources. You can perform the following configurations to resolve this problem.

Step 1: Go to the %user.install.root%\properties directory (%user.install.root% indicates the WebSphere instance installation directory, for example, C:\Program Files\IBM\WebSphere\AppServer\profiles\AppSrv01\), open the sas.client.props file in text editor, and modify the following three properties:

  • com.ibm.CORBA.loginUserid: set to the WebSphere account username.

  • com.ibm.CORBA.loginPassword: set to the WebSphere account password.

  • com.ibm.CORBA.securityServerPort: set to the WebSphere IIOP port, if it is not the default port 2809. You can find out and modify this port number by using the BOOTSTRAP_ADDRESS property in the WebSphere console.

Step 2: Save changes in sas.client.props and then restart WebSphere.

Note: After making the above changes, everytime when a data source is created, you will need to restart WebSphere so the new data source is accessible to AEM.

If the global security mode is turned off, you will need to remove settings of com.ibm.CORBA.loginUserid and com.ibm.CORBA.loginPassword from the sas.client.props file.
