Required runtime files

To ensure your application connects properly with the database using ADO.NET, you must package and distribute the .NET Desktop Runtime and the PowerBuilder runtime files along with your application.

  1. .NET Desktop Runtime 8.0

    .NET Desktop Runtime 8.0 must be installed to the client to support the ADO.NET database connection.

    You will have to manually package and distribute .NET Desktop Runtime. (Make sure to install the 32-bit of .NET Desktop Runtime as the application executable file generated by InfoMaker is 32-bit.)

  2. PowerBuilder runtime files

    Besides .NET Desktop Runtime, you will also need to package and distribute the PowerBuilder runtime files, either in an automatic or manual way.

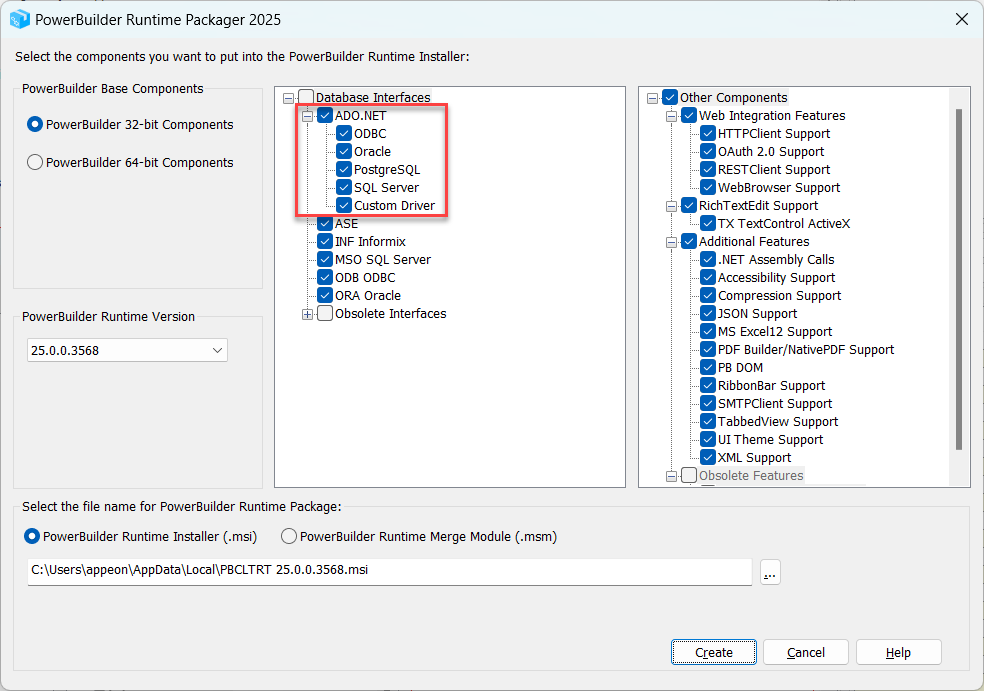

    To package the files automatically, select the database type in the Runtime Packager so that the packager can automatically package the files according to the database type.


    To package the files manually, go to the PowerBuilder Runtime location and get the files according to the following table.

    Database type

    Dependency files

    ORACLE

    pbDBDriver.dll

    Appeon.DB.Proxy.dll

    Appeon.DB.Proxy.runtimeconfig.json

    Appeon.DB.Proxy.deps.json

    Appeon.DB.Base.dll

    Appeon.DB.Base.deps.json

    Appeon.DB.Oracle.dll

    Appeon.DB.Oracle.deps.json

    Microsoft.Win32.SystemEvents.dll

    System.Configuration.ConfigurationManager.dll

    System.Diagnostics.PerformanceCounter.dll

    System.DirectoryServices.dll

    System.DirectoryServices.Protocols.dll

    System.Drawing.Common.dll

    System.Security.Cryptography.ProtectedData.dll

    System.Security.Permissions.dll

    System.Windows.Extensions.dll

    Oracle.ManagedDataAccess.dll

    PostgreSQL

    Appeon.DB.Base.dll

    Appeon.DB.Base.deps.json

    Appeon.DB.PostgreSql.dll

    Appeon.DB.Proxy.dll

    Appeon.DB.Proxy.deps.json

    Appeon.DB.Proxy.runtimeconfig.json

    Appeon.DB.Sharing.dll

    Appeon.DB.Sharing.deps.json

    ljwhost.dll

    Microsoft.Extensions.Logging.Abstractions.dll

    Npgsql.dll

    pbDBDriver.dll

    SQL Server

    pbDBDriver.dll

    Appeon.DB.Proxy.dll

    Appeon.DB.Proxy.runtimeconfig.json

    Appeon.DB.Proxy.deps.json

    Appeon.DB.Base.dll

    Appeon.DB.Base.deps.json

    Appeon.DB.SQLServer.dll

    Appeon.DB.SQLServer.deps.json

    Microsoft.Data.SqlClient.dll

    Microsoft.Data.SqlClient.SNI.dll

    Microsoft.Identity.Client.dll

    Microsoft.SqlServer.Server.dll

    System.Configuration.ConfigurationManager.dll

    System.Security.Permissions.dll

    Azure.Core.dll

    Azure.Identity.dll

    Microsoft.Bcl.AsyncInterfaces.dll

    Microsoft.Identity.Client.Extensions.Msal.dll

    Microsoft.IdentityModel.Abstractions.dll

    Microsoft.IdentityModel.JsonWebTokens.dll

    Microsoft.IdentityModel.Logging.dll

    Microsoft.IdentityModel.Protocols.dll

    Microsoft.IdentityModel.Protocols.OpenIdConnect.dll

    Microsoft.IdentityModel.Tokens.dll

    Microsoft.Win32.SystemEvents.dll

    System.Drawing.Common.dll

    System.IdentityModel.Tokens.Jwt.dll

    System.Memory.Data.dll

    System.Runtime.Caching.dll

    System.Security.Cryptography.ProtectedData.dll

    System.Windows.Extensions.dll

    ODBC

    pbDBDriver.dll

    Appeon.DB.Proxy.dll

    Appeon.DB.Proxy.runtimeconfig.json

    Appeon.DB.Proxy.deps.json

    Appeon.DB.Base.dll

    Appeon.DB.Base.deps.json

    Appeon.DB.Odbc.dll

    Appeon.DB.Odbc.deps.json

    System.Data.Odbc.dll

    Custom Driver

    Appeon.DB.Base.dll

    Appeon.DB.Base.deps.json

    Appeon.DB.Custom.dll

    Appeon.DB.Custom.deps.json

    Appeon.DB.Proxy.dll

    Appeon.DB.Proxy.deps.json

    Appeon.DB.Proxy.runtimeconfig.json

    Appeon.DB.Sharing.dll

    Appeon.DB.Sharing.deps.json

    pbDBDriver.dll


  3. Custom driver files

    The custom driver files and the related dependencies should be distributed alongside the application. For more information, refer to ADO.NET custom driver.
