Defining a graph's properties

This section describes properties of a graph. To define the properties of a graph, you use the graph's Properties view. For general information about the property pages, see Using the graph's Properties view.

Using the General page in the graph's Properties view

You name a graph and define its basic properties on the General page in the graph's Properties view.

To specify the basic properties of a graph:

  • Select Properties from the graph's pop-up menu and then select the General page in the Properties view.

About the model graph in the Design view

As you modify a graph's properties, InfoMaker updates the model graph shown in the Design view so that you can get an idea of the graph's basic layout:

  • InfoMaker uses the graph title and axis labels you specify.

  • InfoMaker uses sample data (not data from your report) to illustrate series, categories, and values.

    In Preview view, InfoMaker displays the graph with data.

Naming a graph

Typically, you do not need to name a graph (the name is used to refer to the graph in PowerBuilder scripts).

To name a graph:

  • On the General properties page for the graph, assign a meaningful name to the graph in the Name box.

Defining a graph's title

The title displays at the top of the graph.

To specify a graph's title:

  • On the General properties page for the graph, enter a title in the Title box.

Multiline titles

You can force a new line in a title by embedding ~n.

For information about specifying properties for the title text, see Specifying text properties for titles, labels, axes, and legends.

Specifying the type of graph

You can change the graph type at any time.

To specify the graph type:

  • On the General properties page for the graph, select a graph type from the Graph Type drop-down list.

Using legends

A legend provides a key to your graph's series.

To include a legend for a series in a graph:

Specifying point of view in 3D graphs

If you are defining a 3D graph, you can specify the point of view that InfoMaker uses when displaying the graph.

To specify a 3D graph's point of view:

  1. On the General properties page for the graph, adjust the point of view along the three dimensions of the graph:

    • To change the perspective, move the Perspective slider.

    • To rotate the graph, move the Rotation slider.

    • To change the elevation, move the Elevation slider.

  2. Define the depth of the graph (the percent the depth is of the width of the graph) by using the Depth slider.

Sorting data for series and categories

You can specify how to sort the data for series and categories. By default, the data is sorted in ascending order.

To specify how to sort the data for series and categories in a graph:

  1. Select Properties from the graph's pop-up menu and then select the Axis

    page in the Properties view.

  2. Select the axis for which you want to specify sorting.

  3. Scroll to Sort, the last option on the Axis page, and select Ascending, Descending, or Unsorted.

Specifying text properties for titles, labels, axes, and legends

A graph can have four text elements:

Title

Labels for the axes

Text that shows the values along the axes

Legend



You can specify properties for each text element.

To specify text properties for the title, labels, axis values, and legend of a graph:

  1. Select Properties from the graph's pop-up menu and then select the Text page in the Properties view.

  2. Select a text element from the list in the Text Object drop-down list.

  3. Specify the font and its characteristics.

Using Auto Size

With Auto Size in effect, InfoMaker resizes the text appropriately whenever the graph is resized. With Auto Size disabled, you specify the font size of a text element explicitly.

To have InfoMaker automatically size a text element in a graph:

  1. On the Text properties page for the graph, select a text element from the list in the Text Object drop-down list.

  2. Select the Autosize check box (this is the default).

To specify a font size for a text element in a graph:

  1. On the Text properties page for the graph, select a text element from the list in the Text Object drop-down list.

  2. Clear the Autosize check box.

  3. Select the Font size in the Size drop-down list.

Rotating text

For all the text elements, you can specify the number of degrees by which you want to rotate the text.

To specify rotation for a text element in a graph:

  1. On the Text properties page for the graph, select a text element from the list in the Text Object drop-down list.

  2. Specify the rotation you want in the Escapement box using tenths of a degree (450 means 45 degrees).

Changes you make here are shown in the model graph in the Design view and in the Preview view.

Using display formats

To use a display format for a text element in a graph:

  1. On the Text properties page for the graph, select a text element from the list in the Text Object drop-down list.

  2. Type a display format in the Format box or choose one from the pop-up menu. To display the pop-up menu, click the button to the right of the Format box.

Modifying display expressions

You can specify an expression for the text that is used for each graph element. The expression is evaluated at execution time.

To specify an expression for a text element in a graph:

  1. On the Text properties page for the graph, select a text element from the list in the Text Object drop-down list.

  2. Click the button next to the Display Expression box.

    The Modify Expression dialog box displays.

  3. Specify the expression.

    You can paste functions, column names, and operators. Included with column names in the Columns box are statistics about the columns, such as counts and sums.

  4. Click OK to return to the graph's Properties view.

Example

By default, when you generate a pie graph, InfoMaker puts the title at the top and labels each slice of the pie with the percentage each slice represents of the whole. Percentages are accurate to two decimal places.

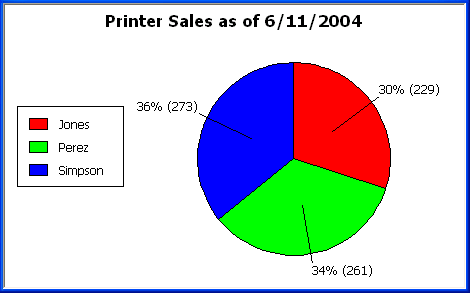

The following graph has been enhanced as follows:

  • The current date displays in the title

  • The percentages are rounded to integers

  • The raw data for each slice is shown in addition to the percentages



To accomplish this, the display expressions were modified for the title and pie graph labels:

Element

Original expression

Modified expression

Title

title

title + " as of " + date(today())

Pie graph labels

if(seriescount > 1, series, string (percentofseries, "0.00%"))

if(seriescount > 1, series, string(percentofseries,"0%") + " (" + value + ")" )


Specifying overlap and spacing

With bar and column charts, you can specify the properties in the following table.

Property

Meaning

Overlap

The percentage by which bars or columns overlap each other. The default is 0 percent, meaning no overlap.

Spacing

The amount of space to leave between bars or columns. The default is 100 percent, which leaves a space equal to the width of a bar or column.


To specify overlap and spacing for the bars or columns in a graph:

  1. Select Properties from the graph's pop-up menu and then select the Graph tab.

  2. Specify a percentage for Overlap (% of width) and Spacing (% of width).

Specifying axis properties

Graphs have two or three axes. You specify the axes properties in the Axis page in the graph's Properties view.

To specify properties for an axis of a graph:

  1. Select Properties from the graph's pop-up menu and then select the Axis page in the Properties view.

  2. Select the Category, the Value, or the Series axis from the Axis drop-down list.

    If you are not working with a 3D graph, the Series Axis options are disabled.

  3. Specify the properties as described next.

Specifying text properties

You can specify the characteristics of the text that displays for each axis. The following table shows the two kinds of text associated with an axis.

Type of text

Meaning

Text

Text that identifies the values for an axis.

Label

Text that describes the axis. You specify the label text in a painter. You can use ~n to embed a new line within a label.


For information on specifying properties for the text, see Specifying text properties for titles, labels, axes, and legends.

Specifying datatypes

The data graphed along the Value, Category, and Series axes has an assigned datatype. The Series axis always has the datatype String. The Value and Category axes can have the datatypes listed in the following table.

Axis

Possible datatypes

Both axes (for scatter graph)

Number, Date, Time

Value (other graph types)

Number, Date, DateTime, Time

Category (other graph types)

String, Number, Date, DateTime, Time


InfoMaker automatically assigns the datatypes based on the datatype of the corresponding column; you do not specify them.

Scaling axes

You can specify the properties listed in the following table to define the scaling used along numeric axes.

Property

Meaning

Autoscale

If selected (the default), InfoMaker automatically assigns a scaling for the numbers along the axis.

RoundTo, RoundToUnit

Specifies how to round the end points of the axis (note that this just rounds the range displayed along the axis; it does not round the data itself).

You can specify a number and a unit. The unit is based on the datatype; you can specify Default as the unit to have InfoMaker decide for you. For example, if the Value axis is a Date column, you can specify that you want to round the end points of the axis to the nearest five years. In this case, if the largest data value is the year 1993, the axis extends up to 1995, which is 1993 rounded to the next highest five-year interval.

MinimumValue, MaximumValue

The smallest and largest numbers to appear on the axis (disabled if you have selected Autoscale).

ScaleType

Specifies linear or logarithmic scaling (common or natural).

ScaleValue

Specifies whether values are displayed as actual values or as a cumulative value, a percentage, or a cumulative percentage.


Using major and minor divisions

You can divide axes into divisions. Each division is identified by a tick mark, which is a short line that intersects an axis. In the Sales by Printer graphs shown in Examples, the graph's Value axis is divided into major divisions of 50 units each. InfoMaker divides the axes automatically into major divisions.

To define divisions for an axis of a graph:

  1. To divide an axis into a specific number of major divisions, type the number of divisions you want in the MajorDivisions box.

    Leave the number 0 to have InfoMaker automatically create divisions. InfoMaker labels each tick mark in major divisions. If you do not want each tick mark labeled, enter a value in the DisplayEveryNLabels box. For example, if you enter 2, InfoMaker labels every second tick mark for the major divisions.

  2. To use minor divisions, which are divisions within each major division, type the appropriate number in the MinorDivisions box. To use no minor divisions, leave the number 0.

When using logarithmic axes

If you want minor divisions, specify 1; otherwise, specify 0.

Representing divisions with grid and drop lines

You can specify lines to represent the divisions as described in the following table and illustrated in the following figure.

Line

Meaning

Grid line

A line that extends from a tick mark across the graph. Grid lines make graphs easier to read.

Drop line

A line that extends vertically from a data point to its axis (not available for all graph types).

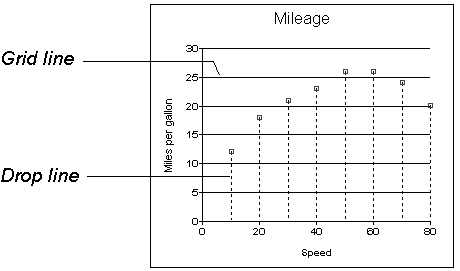

Figure: Grid and drop lines in a graph

Using line styles

You can define line styles for the components of a graph listed in the following table.

Component

Meaning

PrimaryLine

The axis itself

SecondaryLine

The axis parallel to and opposite the primary axis

OriginLine

A grid line that represents the value zero

Frame

The frame for the axis in 3D graphs (disabled for 2D graphs)


Specifying a pointer

You can specify a pointer to use when the mouse is over a graph while displaying the report.

To specify a pointer for a graph:

  1. Select Properties from the graph's pop-up menu and then select the Pointer page in the Properties view.

  2. Select a stock pointer from the list, or select a CUR file containing a pointer.
