Grouping rows

You can group related rows together and, optionally, calculate statistics for each group separately. For example, you might want to group employee information by department and get total salaries for each department.

How groups are defined

Each group is defined by one or more report columns. Each time the value in a grouping column changes, a break occurs and a new section begins.

For each group, you can:

  • Display the rows in each section

  • Specify the information you want to display at the beginning and end of each section

  • Specify page breaks after each break in the data

  • Reset the page number after each break

Grouping example

The following report retrieves employee information. It has one group defined, Dept_ID, so it groups rows into sections according to the value in the Dept_ID column. In addition, it displays:

  • Department ID before the first row for that department

  • Totals and averages for salary and salary plus benefits (a computed column) for each department

  • Grand totals for the company at the end

The following screenshot shows the report.

How to do it

You can create a grouped report in three ways:

Using the Group presentation style

One of the report presentation styles, Group, is a shortcut to creating a grouped report. It generates a tabular report that has one group level and some other grouping properties defined. You can then further customize the report.

To create a basic grouped report using the Group presentation style:

  1. Select File>New from the menu bar.

    The New dialog box displays.

  2. Choose the Object tab page and the Group presentation style, and click OK.

  3. Choose a data source and define the data.

    You are prompted to define the grouping column(s).

  4. Drag the column(s) you want to group on from the Source Data box to the Columns box.

    Multiple columns and multiple group levels

    You can specify more than one column, but all columns apply to group level one. You can define one group level at this point. Later you can define additional group levels.

    In the following example, grouping will be by department, as specified by the dept_id column:

    If you want to use an expression, you can define it when you have completed the wizard. See Using an expression for a group.

  5. Click Next.

    InfoMaker suggests a header based on your data source. For example, if your data comes from the Employee table, InfoMaker uses the name Employee in the suggested header.

  6. Specify the Page Header text.

  7. If you want a page break each time a grouping value changes, select the New Page On Group Break box.

  8. If you want page numbering to restart at 1 each time a grouping value changes, select the Reset Page Number On Group Break box and the New Page On Group Break box.

  9. Click Next.

  10. Select Color and Border settings and click Next.

  11. Review your specification and click Finish.

    The report displays with the basic grouping properties set.

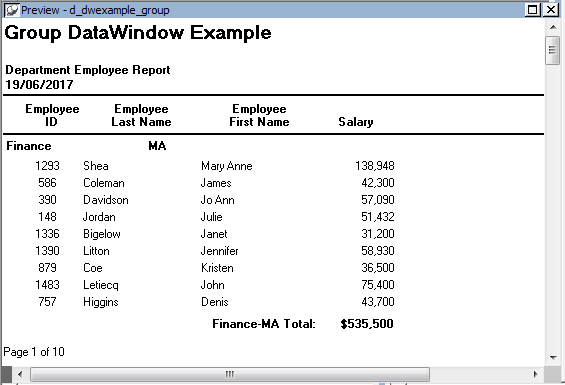

    This is an example of a Group style report:

What InfoMaker does

As a result of your specifications, InfoMaker generates a tabular report and:

  • Creates group header and trailer bands

  • Places the column you chose as the grouping column in the group header band

  • Sorts the rows by the grouping column

  • Places the page header and the date (as a computed field) in the header band

  • Places the page number and page count (as computed fields) in the footer band

  • Creates sum-computed fields for all numeric columns (the fields are placed in the group trailer and summary bands)

Here is the preceding report in the Preview view:

Using an expression for a group

If you want to use an expression for one or more column names in a group, you can enter an expression as the Group Definition on the General page in the Properties view after you have finished using the Group wizard.

To use an expression for a group:

  1. Open the Properties view and select the group header band in the Design view.

  2. Click the ellipsis button next to the Group Definition box on the General page to open the Specify Group Columns dialog box.

  3. In the Columns box, double-click the column that you want to use in an expression.

    The Modify Expression dialog box opens. You can specify more than one grouping item expression for a group. A break occurs whenever the value concatenated from each column/expression changes.

What you can do

You can use any of the techniques available in a tabular report to modify and enhance the grouped report, such as moving controls, specifying display formats, and so on. In particular, see Defining groups in an existing report to learn more about the bands in a grouped report and how to add features especially suited for grouped reports (for example, add a second group level, define additional summary statistics, and so on).

Defining groups in an existing report

Instead of using the Group presentation style to create a grouped report from scratch, you can take an existing tabular report and define groups in it.

To add grouping to an existing report:

  1. Start with a tabular report that retrieves all the columns you need.

  2. Specify the grouping columns.

  3. Sort the rows.

  4. (Optional) Rearrange the report.

  5. (Optional) Add summary statistics.

  6. (Optional) Sort the groups.

    Steps 2 through 6 are described next.

Specifying the grouping columns

To specify the grouping columns:

  1. In the Report painter, Select Rows>Create Group from the menu bar.

    The Specify Group Columns dialog box displays.

  2. Specify the group columns, as described in Using the Group presentation style.

  3. Set the Reset Page Count and New Page on Group Break properties on the General page in the Properties view.

Creating subgroups

After defining your first group, you can define subgroups, which are groups within the group you just defined.

To define subgroups:

  1. Select Rows>Create Group from the menu bar and specify the column/expression for the subgroup.

  2. Repeat step 1 to define additional subgroups if you want.

    You can specify as many levels of grouping as you need.

How groups are identified

InfoMaker assigns each group a number (or level) when you create the group. The first group you specify becomes group 1, the primary group. The second group becomes group 2, a subgroup within group 1, and so on.

For example, suppose you define two groups. The first group uses the dept_id column and the second group uses the status column.

The rows are grouped first by department (group 1). Within department, rows are grouped by status (group 2). If you specify page breaks for the groups, a page break will occur when any of these values changes.

You use the group's number to identify it when defining summary statistics for the group. This is described in Adding summary statistics.

Sorting the rows

InfoMaker does not sort the data when it creates a group. Therefore, if the data source is not sorted, you must sort the data by the same columns (or expressions) specified for the groups.

For example, if you are grouping by dept_id then status, select Rows>Sort from the menu bar and specify dept_id and then status as sorting columns:

You can also sort on additional rows. For example, if you want to sort by employee ID within each group, specify emp_id as the third sorting column.

For more information about sorting, see Sorting rows.

Rearranging the report

When you create a group, InfoMaker creates two new bands for each group:

  • A group header band

  • A group trailer band

The bar identifying the band contains:

  • The number of the group

  • The name of the band

  • The name of each column that defines the group

  • An arrow pointing to the band

You can include any control in the report (such as columns, text, and computed fields) in the header and trailer bands of a group.

Using the group header band

The contents of the group header band display at the top of each page and after each break in the data.

Typically, you use this band to identify each group. You might move the grouping column from the detail band to the group header band, since it now serves to identify one group rather than each row.

For example, if you group the rows by department and include the department in the group header, the department will display before the first line of data each time the department changes.

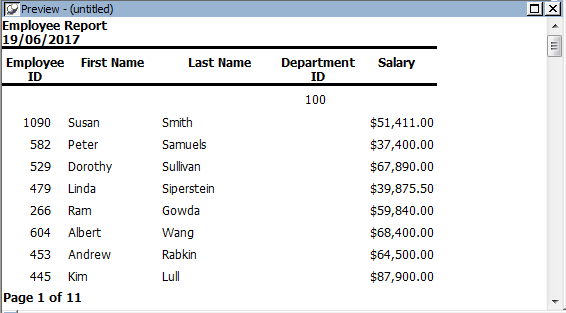

At runtime, you see this:

Suppressing group headers

If you do not want a group header to display at the top of each page when you print or display a report, select the Suppress Group Header check box on the General property page for the header. If none of the headers are suppressed, they all display at the top of each page. When a page break coincides with a group break, the group header and any group headers that follow it display even if the Suppress Group Header property is set, but higher level headers are suppressed if the property is set for those headers.

For example, suppose a report has three groups: division, sales region, and sales manager. If all three group headers are suppressed, and a sales region group break coincides with a page break, the division header is suppressed but the sales region and sales manager headers display.

Using the group trailer band

The contents of the group trailer display after the last row for each value that causes a break.

In the group trailer band, you specify the information you want displayed after the last line of identical data for each value in the group. Typically, you include summary statistics here, as described next.

Adding summary statistics

One of the advantages of creating a grouped report is that you can have IM calculate statistics for each group. To do that, you place computed fields that reference the group. Typically, you place these computed fields in the group's trailer band.

To add a summary statistic:

  1. Select Insert>Control>Computed Field from the menu bar.

  2. Click in the Design view where you want the statistic.

    The Modify Expression dialog box displays.

  3. Specify the expression that defines the computed field (see below).

  4. Click OK.

A shortcut to sum values

If you want to sum a numeric column, select the column in Design view and click the Sum button in the Controls drop-down toolbar. InfoMaker automatically places a computed field in the appropriate band.

Specifying the expression

Typically, you use aggregate and other functions in your summary statistic. InfoMaker lists functions you can use in the Functions box in the Modify Expression dialog box. When you are defining a computed field in a group header or trailer band, InfoMaker automatically lists forms of the functions that reference the group:

You can paste these templates into the expression, then replace the #x that is pasted in as the function argument with the appropriate column or expression.

For example, to count the employees in each department (group 1), specify this expression in the group trailer band:

Count( Emp_Id for group 1 )

To get the average salary of employees in a department, specify:

Avg( Salary for group 1 )

To get the total salary of employees in a department, specify:

Sum( Salary for group 1 )

The group trailer band in this example shows the average and total salary for the group.

At runtime, the average and total salaries are calculated and displayed:

Sorting the groups

You can sort the groups in a report. For example, in a report showing employee information grouped by department, you might want to sort the departments (the groups) by total salary.

Typically, this involves aggregate functions, as described in Adding summary statistics. In the department salary example, you would sort the groups using the aggregate function Sum to calculate total salary in each department.

To sort the groups:

  1. Place the mouse pointer on the group header bar (not inside the band) until the pointer becomes a double-headed arrow.

  2. Click.

    The General property page for the group displays in the Properties view.

  3. Click the ellipsis button next to the Group Sort property.

    The Specify Sort Columns dialog box displays.

  4. Drag the column you want to sort the groups by from the Source Data box into the Columns box.

    If you chose a numeric column, InfoMaker uses the Sum function in the expression; if you chose a non-numeric column, InfoMaker uses the Count function.

    For example, if you chose the Salary column, InfoMaker specifies that the groups will be sorted by the expression sum(salary for group 1):

  5. Select ascending or descending sort as appropriate.

  6. If you want to modify the expression to sort on, double-click the column in the Columns box.

    The Modify Expression dialog box displays.

  7. Specify the expression to sort on.

    For example, to sort the department group (the first group level) on average salary, specify avg(salary for group 1).

  8. Click OK.

    You return to the Specify Sort Columns dialog box with the expression displayed.

  9. Click OK again.

    At runtime, the groups will be sorted on the expression you specified.
